Laboratory & Pilot scale mixers & Dispersers


Mixers, dispersers, rotor stator mixers, homogenizers and stirrers for processing a wide range of materials requiring uniform processing

Three standard mixer / disperser sizes to meet space and batch requirements:
Small Mixer - Reduced bench space – 12” mixing shaft - up to 1 to 2 gallons
Standard Mixer – 16 inch mixing shaft - Batch volume up to 5 gallons
Pilot Mixer – 24 inch mixing shaft - Batch volumes up to 20 gallons

  • Ideal for producing small batches from 50 ml to 80 liters depending on the model chosen ​

  • High shear disperser / mixer

  • Adaptable to a Rotor Stator mixing head

  • Adaptable to a Batch Bead mill system

  • Infinitely variable speed with precise control

  • Heavy duty motors provide constant rpm & constant torque even under load

  • General purpose electrical controls standard

  • Explosion proof motors & controls available

  • AC variable frequency driven

  • Digital gauges to monitor RPM and amperage

  • PLC controls available to monitor power, temperature, process time, RPM, amperage, temperature.

  • Various mixing & dispersing blades available to meet process requirements

  • Blades easily changeable

  • Head lift systems available - Manual, Electric, Pneumatic

  • The standard mixing head will raise and lower to clear 5 gallons vessels

  • Head locking system standard

  • Adjustable vessel clamping system

  • Shaft guard available

  • Safety switches to insure head and shaft are in the lowered position

  • Stainless steel construction

Mixer Selection

Hazardous Environments
Mixers & Dispersers for use in hazardous locations include Explosion Proof Motors and operator controls

Electric Lift
For precise control of the mixing blade location

Safety Sensors available

Includes "vessel in place" and "head in lowered position" safety sensors. Shaft guards available.

 MODEL
DESCRIPTION
LIFT
HP
ELECTRIC POWER
   DIMENSIONS
MXML-SV
Mixer / Disperser Small version
Manual
0.5/1/1.5
110/220-50/60 HZ
15"x16" x25" H
(32" raised)
MXML-STD
Mixer / Disperser Standard version
Manual
0.5/1/1.5/2/3
110/220-50/60 HZ
20"x22"x28"H
(raised 40")
MXEL-SV
Mixer / Disperser Small version
Electric
0.5/1.0/1.5
110/220-50/60 HZ
15"x16" x25" H
(32" raised)
MXEL-STD
Mixer / Disperser Standard version
Electric
0.5/1/1.5/2/3
110/220/380/460 - 50/60 HZ
20"x22"x28"H
(raised 40")
MXPL-STD
Mixer / Disperser Standard version
Pneumatic
0.5/1/1.5/2/3
110/220/380/460 - 50/60 HZ
20"x22"x28"H
(raised 40")
MXPL-LV
Mixer / Disperser Large version
Pneumatic
1/1.5/2/3/5
220/460/280 - 50/60 HZ
30"x27"x36" Tall
(60" raised)

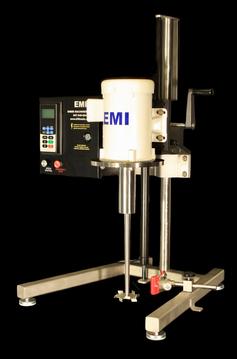

Manual lift mixer shown with standard controls. Variable speed for volumes less than 1 liter and up to 20 liters typical.

Laboratory Mixers & Dispersers

- All mixers inverter controlled variable speed
- Explosion proof available with Manual Lift and Pneumatic Lift versions
- Other voltages available to meet power requirements
- Rotor / Stator Heads available
- Batch Bead Mill available
- Mixing & Dispersing blades available to meet process requirements.
- Blades can be removed without tools

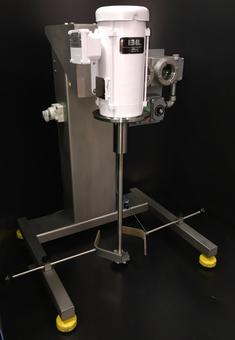

Larger Pilot Scale Mixers & Disperser for volumes up to 150 liters. Pneumatic lift, variable speed, with electrical panel to meet electrical requirements.

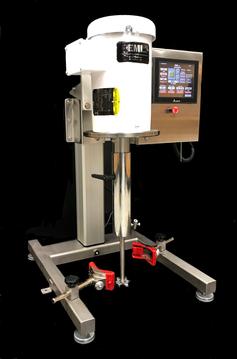

Standard Electric lift mixer for processing volumes from less than 1 liter to 20 liters. Shown with PLC controls for operating, monitoring & data collection.

Small version mixer for batch volumes less than 1 liter to 6 liters..
Reduced bench space required.

(847) 548-0044


Made in America, sold throughout the world
